General Low-Access Examination Table

The 4520 offers the popular features of barrier free low access, a power back with positioning from flat to 80º chair regardless of the table’s height and a patient weight capacity of 700 lbs.

ADD-ON OPTIONS of electrical receptacles, instrument warming drawer and a standard non-programmable hand control allows buyers to decide what features they need and not be forced to buy options they do not want. A field reversible side drawer, a stainless steel footend drawer, a stainless steel irrigation basin along with multi-position stirrups are just a few of the standard features included with every 4520 table.


  • 4-YEAR Warranty

  • Patient Load: 700 lbs.

  • Low-access: 18.5”  Maximum height: 38”

  • Power Back adjusts from horizontal to 80°

  • Easy to clean 100% Seamless Vacuum Formed Top with additional padding on edges for patient comfort

  • 11° Pelvic Tilt

  • Field Reversible Side Drawer

  • Stainless Steel Footend Drawer

  • Stainless Steel Irrigation Basin operates independent of Leg Extension

  • Multi-position Positive Lock Stirrups with length and lateral adjustment

  • Overload Protection:  Circuit Breakers - NO FUSES

  • Fully Welded All Steel Base Construction - NO PLASTIC

  • Table Ships Complete - NO ASSEMBLY REQUIRED

  • Classified by UL to ANSI/AAMI ES60601-1 (2005) + AMD 1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014)


Electrical Receptacles* Instrument Warmer** Hand Control








*Hospital grade, dual receptacles with easy access dedicated circuit breaker

Duty Cycle: Continuous operation

Total Load: 3.9 amps

Rating: 115V 60Hz

**45 Watts, ON/OFF switch with integrated circuit breaker

Duty Cycle: Continuous operation

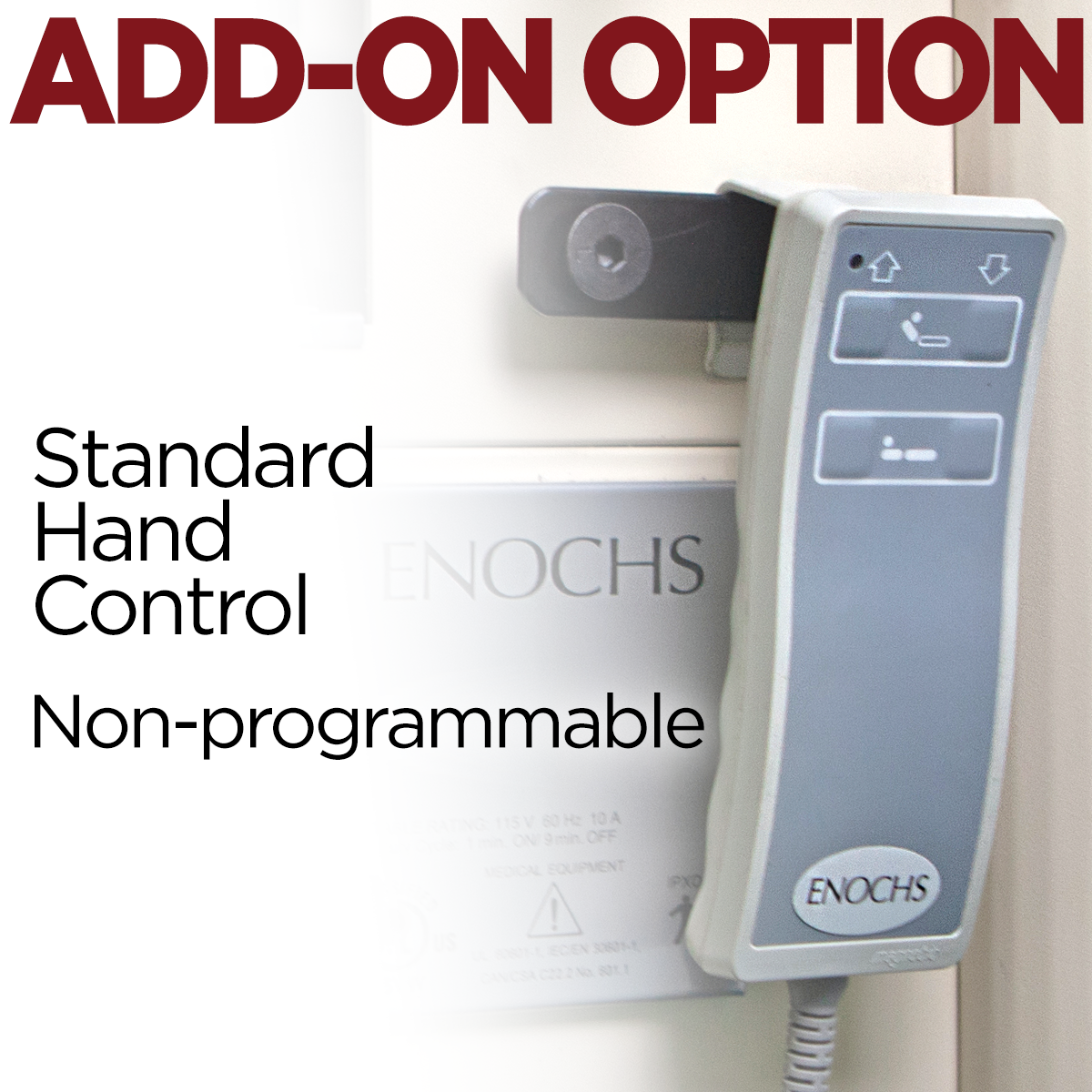

“Easy Read”, non-programmable, SELV
